Microneedle

Product Description

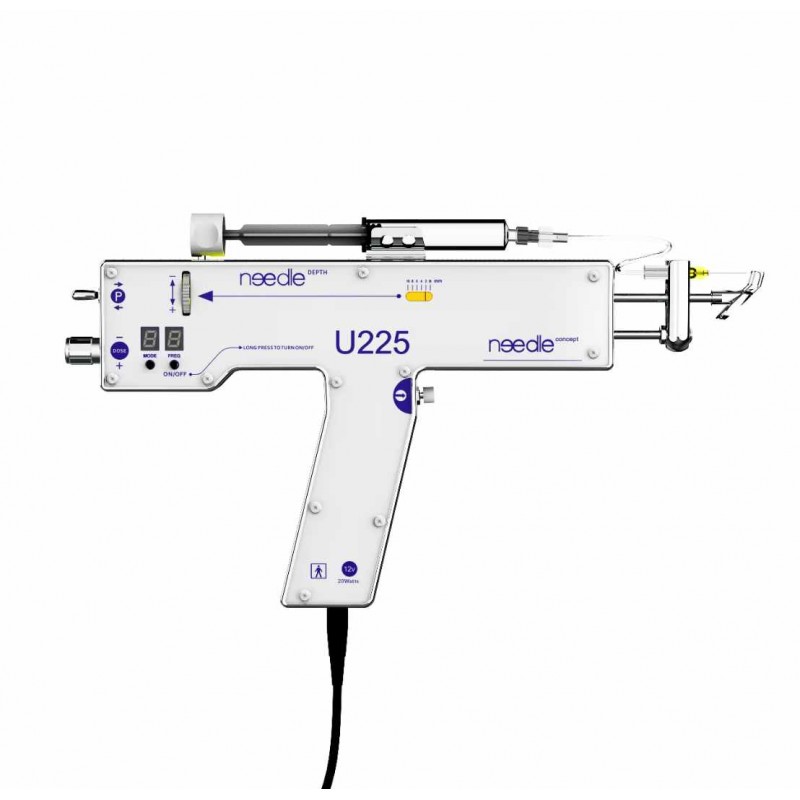

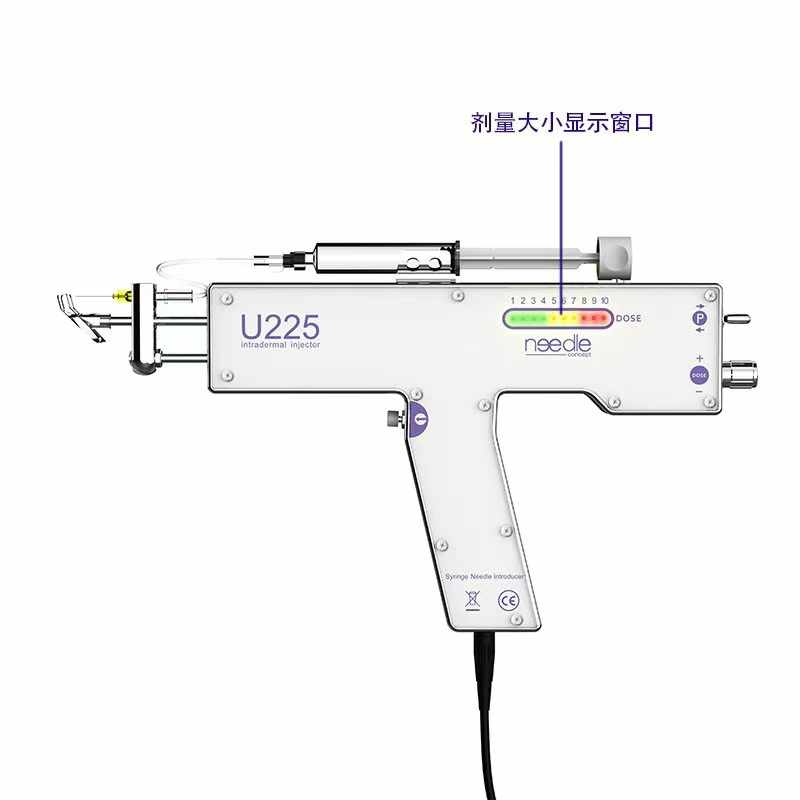

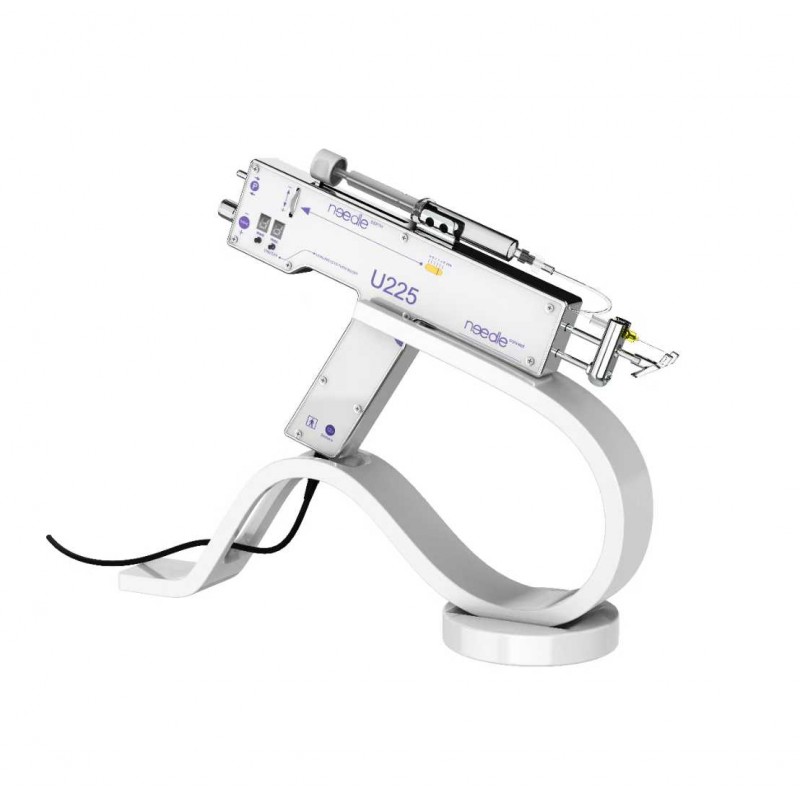

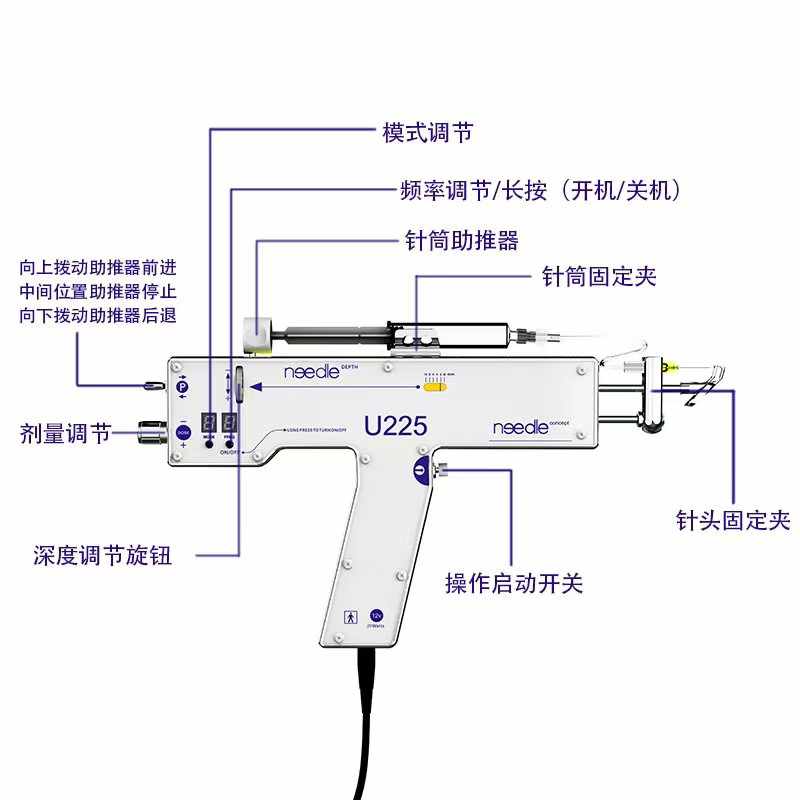

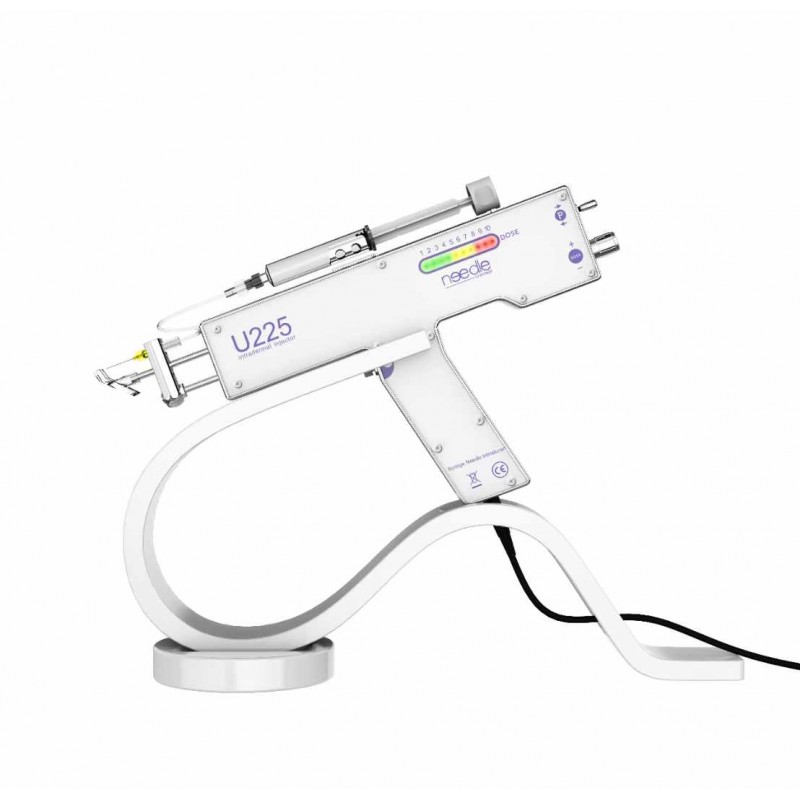

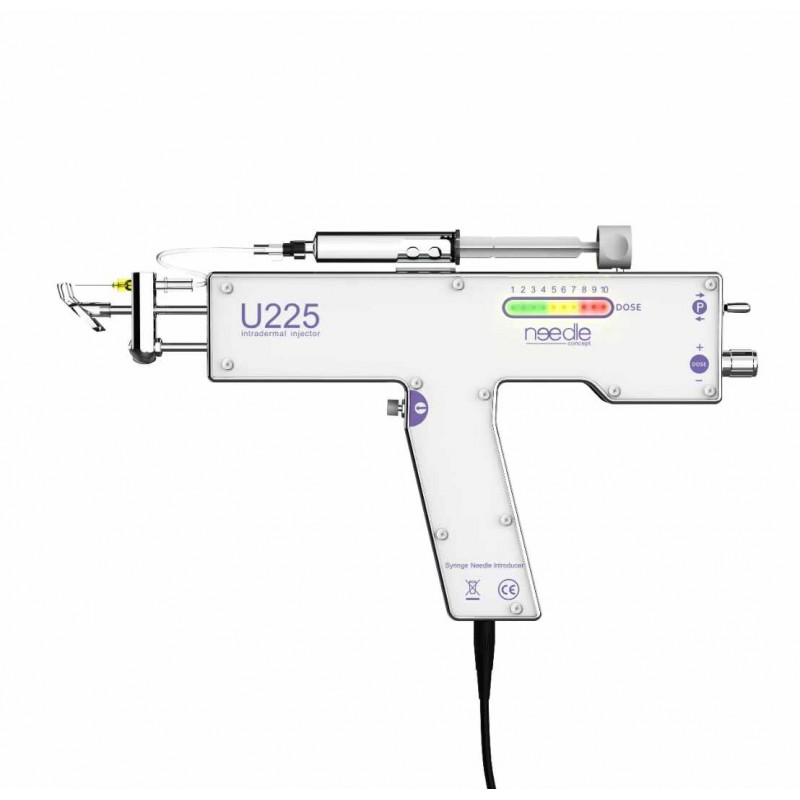

The U225 is a meso injector (mesogun)equipped with an electromagnetic device, a unique specificity that allows to obtain power, durability, and coherence. Thus, the high frequency allows almost painless application 450 micro-injections/minutes.

Therapeutic Indications

The U225 can be used to perform treatments on the face as well as the rest of the body, consistently and repeatably with a wide range of injection rates.

Neck

Chest

Hands

Alopecia

Sagging skin

Expected Benefits

Separation of the needle & syringe

This principle eliminates all vibration phenomena and ensures perfect linearity in the movement of the needle.

High reliability & fine precision

The U225 thanks to its unique blocking system, limits the loss of product. Its design guarantees intensive use, high accuracy and proven reliability.

Adjusting the injection depth

With the U225  the practitioner can finely adjust the penetration of the needle between 1 and 10mm.

Potential applications:

General Medicine

Rheumatoloy

Pain management

Cosmetic Medicine

Dermatology

Platelet Rich Plasma (PRP)

Characteristics:

U225 Meso Injector:

Drive : electromagnetic

Operating mode : Manual or automatic (16 frequencies)

Injection depth selection : Adjustable from 1 à 10 mm (+/-0.5)

Speed : 0.47 Hz to 7.1 Hz (28 to 426 inj/min)

Casing : Stainless steel structure and parts, polymethyl methacrylate covers, other parts are polyacetal

Power Supply:

Input voltage: 100-240 V AC / 50–60 Hz

 Output voltage : 12 V DC – 650 mA

Power consumption : < 0.5 A – < 5 Watts

Cable length: 1.80 metres

Operating temperature : 10°C to 40°C

Storage temperature : Room température

Classification : BF type

Dimensions : Approximately 275 mm (L) x 25 mm (l) x 155 mm (H) (injector only)

Weight : about 650 g (injector only)

Injection pressure selection : Adjustable from 0.5 to 5 bar (+/-0.3)
